Power Booster-15A EXPAND POWERING RANGE

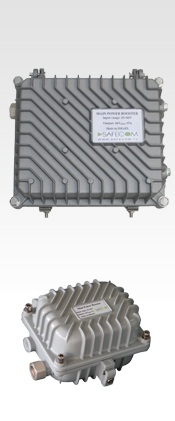

The Power Booster (RF-Pass 5-1000MHz) unit ensures the optimal voltage levels required at remote locations by optical nodes, trunk amplifiers, and line extenders overcoming voltage drop along the power or coaxial cables. Increasing the distance between remote power sources leads to a reduction in the number of power insertion points across the network, less power supplies (especially under-loaded power supplies are unnecessary), less street cabinets and permits are needed and less flat fees to the utility company for each of the power supply (even if it was never used).



US PATENT 8,415,822

The RF-PASS Power Booster (US patent 8,415,822 ) solves the power distribution problem in a CATV network caused by high resistance and low energy-efficient coax or electric cables.

Safecom's cost-saving patented Power Booster compensate the voltage drop over coax cable and enables to utilize the DPS remote backup technology between distances  locations.  The Power Booster can be seamlessly connected via cable to the DPSv4 & DSPv5 enabling robust power redundancy system and overcome the range limitation of the previous DPS generations. In addition to HFC networks, the power booster now enables back up to Deep Fiber networks with central powering using existing coax infrastructure between powering centers.

Passive, standalone element, life time operation & ONLINE (Zero Crossing patented technology). 15A 30-87Vac (US) / 15A 30-65Vac (EU),

   Zero Crossing Technology.

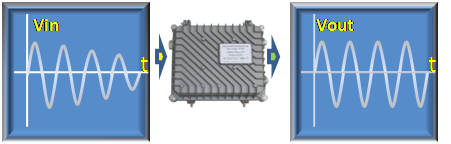

Power Booster patented technology is based on a  voltage management of novel AC/AC online transformation technology with adaptive, universal conversion ratio that enables Smooth transition (Zero crossing) between conversion levels. Algorithmic-based regulator guarantees optimal, stable output voltage (+/- 4V).      The smooth transition between conversion levels, enabled by this innovative technology to yield much higher efficiency rates (96% and above) than conventional AC/AC transformer (typically 85-90% efficiency) and lead to substantial electricity saving on the CATV network. .

  • Increasing the powering area covered by power supply.

  • Minimize the number of power supplies in the network.

  • ONLINE ( 0 -transfer time , No relay , Life time operation )

  • RF Pass 5-1000MHz (1.2 dB max loss) , 5/8 inch  standard coaxial inputs + External inputs/outputs option.

  • Compact size , Light weight, 19 x22 cm ( 7.6 inch, 8.7 inch) ,6 kg, 13,2 lbs only. for 15A,87V model)

  • Electronic over load protection without relay

  • Enabling DPS backup for longer distance.

  • Solving inrush current affect.

  • Save energy wastage on coax or power cables

  • Avoid low voltage effect at remote amplifiers or fiber nodes.

  • Waterproof IPX8 standard.







Model PB 90V-15A 4G (F/S) US standard



Model PB 60V-15A 4G (F/S) Europe Standard

Max Power

1,350 VA

Max Power

975 VA

Operating Input Voltage range

30÷ 90 Vac

Operating Input Voltage range

30÷ 65 Vac

Input Frequency (Hz)

50/60 Hz

Input Frequency (Hz)

50/60 Hz

Max Output Current (A) RMS

15A

Max Output Current (A) RMS

15A

Max Input Current (A) RMS

15A

Max Input Current (A) RMS

15A

Output Voltage range

78 ÷ 90 Vac

Output Voltage range

56-64 Vac

Voltage gain ratio ( input 78-90 Vac )

1 : 1.03

Voltage gain ratio ( input 56-64Vac )

1 : 1.03

Voltage gain ratio (input 68- 78Vac)

1 : 1.15

Voltage gain ratio (input 49-56Vac)

1 : 1.18

Voltage gain ratio (Input 59-68Vac)

1 : 1.33

Voltage gain ratio (input 42-49Vac)

1 : 1.36

Voltage gain ratio (Input <59Vac)

1 : 1.52

Voltage gain ratio (input <42Vac)

1 : 1.56

Load Regulation (%)

<2%

Load Regulation (%)

<2%

Efficiency (%)

>96%

Efficiency (%)

>96%

Transfer time (Zero crossing)

ONLINE

Transfer time (Zero crossing)

ONLINE

Mechanical

Mechanical

Dimensions ( L , W , H ) cm

23 X 20 X 15

Dimensions ( L , W , H ) mm

23 X 20 X 15

Weight (Kg/lbs)

5.95kg/13.1lbs

Weight (Kg/lbs)

6.75kg/14.9lbs

Finish

Passivation

Finish

Passivation

Environment

Environment

Operating Temperature

-40ºC ÷ +65ºC

Operating Temperature

-40ºC ÷ +65ºC

Storage Temperature

-40ºC ÷ +70ºC

Storage Temperature

-40ºC ÷ +70ºC

Water proof IPX8

0 ÷ 100%

Water proof

0 ÷ 100%

Standard Features

Standard Features

5/8 inch coaxial input/output

5/8 inch coaxial input/ouput

Electronic Overload protection

Electronic Overload protection

Automatic Standby mode

Automatic Standby mode

RF Pass 5-1000MHZ

RF PCB made in JAPAN

RF Pass 5-1000MHZ

RF PCB made in JAPAN

Through Loss

Through Loss

5-600 MHz

0.85  +/-0.35 dB

5-600 MHz

0.85 +/-0.35 dB

600-800MHz

1 +/-0.35 dB

600-800MHz

1 +/-0.35 dB

800-1000 MHz

1.65 +/-0.45 dB

800-1000 MHz

1.65 +/-0.45 dB

Return Loss 5-1000 MHz

>18 dB

Return Loss 5-1000 MHz

>18 dB
