POWERING 5G CELLS AND CCTV
through existing HFC networks- (RF Pass)

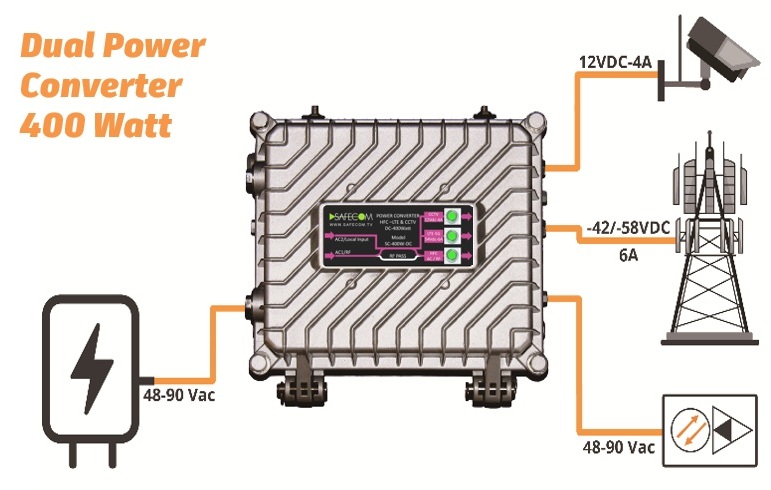

Converting
AC voltage from the CATV-HFC network, 46-90 Vac, into -54 Vdc at 6.5 A for
powering LTE cells and into 12 Vdc at 4 A for powering CCTV systems.
Safecom's
new vision focuses on utilizing existing Hybrid Fiber-Coaxial (HFC) networks to
power 5G macro and small cells by leveraging the available spare capacity
within the network. This is achieved through an innovative and highly efficient
Dual High-Power AC-DC inverter (400W).
The
inverter converts alternating current (AC) electricity from the HFC network
(typically ranging from 48-90 Vac) into -42/-58V DC, which powers 4G and 5G LTE
cells, as well as providing 12V DC for CCTV networks.
This
Dual Power Converter offers a comprehensive power solution that accelerates the
deployment of new LTE 5G and CCTV systems without the need for additional
investments in separate power sources or extra connections to the electric
utility infrastructure.
By
utilizing existing infrastructure, operators can significantly reduce both
capital and operational expenses, speeding up the deployment of new 5G
technology and CCTV systems with minimal effort. This approach also lowers
routine maintenance requirements and greatly enhances the reliability and
resilience of the systems.
Furthermore,
this solution provides cable TV operators with an opportunity to generate new
revenue from their existing HFC networks by supplying on-site electricity to
LTE cells operated by mobile service providers and CCTV services.
A streamlined powering solution for
accelerating 5G deployment
ü
Waterproof
ü
RF
pass (1.2 / 1.8 GHz) + external AC input
ü
Power
inserter built-in 2 x 17A 90Vac
ü
High
Power 400W
