Optical Networks.

Full powering backup to all optical devices by DPS triple and dual grid configuration.

Backup via Regular electricity power cables.



HFC - Optical nodes and Line extenders.

Full powering backup to all optical devices and line extenders by DPS triple and dual grid configuration.

Backup powering is via existing coaxial cables.





HFC- Optical nodes and Line extenders.

Full powering backup to all optical devices and line extenders by DPS triple and dual grid configuration.

Backup powering is via non used coaxial cables .



Simulation of DPSV5 Backup system (US,EP patent)and Power Booster (US Patent)

Overcome voltage drop over coax cable at typical HFC configuration.

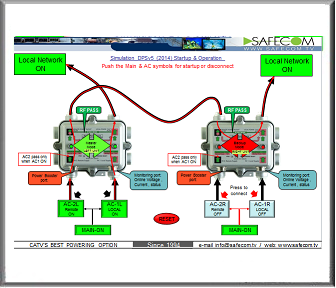

Simulation of DPSV5 LED Status Indications and power flow for each operational mode.

The Demo (Powerpoint file) is showing the normal LED color indication for each mode.

Each DPSv5 can be fed locally by two AC sources (two P.S or two ports at dual T-foremr P.S). The buttons indicating those inputs are: PS-1R, PS-2R, PS-1L, PS-2L.
